2013 Official 1LE Specs

Wheelbase 112.3
Length 190.4
Height 54.2
Front Track 63.7
Rear Track 63.7
Head Room, Front 37.40
Head Room, Rear 35.30
Shoulder Room, Front 56.90
Shoulder Room, Rear 42.50
Leg Room, Front 42.40
Leg Room, Rear 29.90
Weight 3860 pound SS Coupe Manual Trans
Weight distribution 52/48
Compression ratio 10.7:1 LS3
HP 426 (318) @ 5900 SAE certified ( LS3 )
Torque 420 (569) @ 4600 SAE certified (LS3 )
Displacement 376/6162
Maximum Engine Speed (RPM) 6600 (LS3)

Exhaust - Cast stainless steel (exhaust manifolds), stainless steel with active valves and quad 3.5" bright tips

2013 1LE COUPE TOTAL PRODUCTION

  • Assembly Oshawa, Ontario Canada
  • Total 1LE Performance Package: 1,826
    • Memo: w/1SS Package: 413
    • Memo: w/2SS Package: 1,413

2013 1LE PRODUCTION NUMBERS
COLOR
Model
 Count
Black (GBA)
1ES37
1LE 1SS
1SA
 78
Victory Red (GCN)
1ES37
1LE 1SS
1SA
 76
Summit White (GAZ)
1ES37
1LE 1SS
1SA
 72
Silver Ice (GAN)
1ES37
1LE 1SS
1SA
 44
Rally Yellow (GCO)
1ES37
1LE 1SS
1SA
 28
Inferno Orange (GCR)
1ES37
1LE 1SS
1SA
 32
Blue Ray (GXH)
1ES37
1LE 1SS
1SA
 20
Ashen Gray (GLJ)
1ES37
1LE 1SS
1SA
 43
Crystal Red (GBE)
1ES37
1LE 1SS
1SA
 20

        Grand Total:   413

Black (GBA)
1ES37
1LE 2SS
1SB
 451
Victory Red (GCN)
1ES37
1LE 2SS
1SB
 240
Summit White (GAZ)
1ES37
1LE 2SS
1SB
 221
Silver Ice (GAN)
1ES37
1LE 2SS
1SB
 47
Rally Yellow (GCO)
1ES37
1LE 2SS
1SB
 64
Inferno Orange (GCR)
1ES37
1LE 2SS
1SB
 95
Blue Ray (GXH)
1ES37
1LE 2SS
1SB
 70
Ashen Gray (GLJ)
1ES37
1LE 2SS
1SB
 139
Crystal Red (GBE)
1ES37
1LE 2SS
1SB
 86

        Grand Total:   1,413

There were also CTF 1LE's built this year as test models. Some of them will be re-sold to dealers and had different VINS then a production 2013 1LE. The CTF VINS started with D9799XXX. Nobody knows for sure how many were built.

2013 COLORS

  • Black
  • Ashen Gray
  • Blue Ray Metallic ( New for 2013 )
  • Inferno Orange Metallic
  • Rally Yellow
  • Silver Ice Metallic
  • Summit White
  • Victory Red
  • Crystal Red Tintcoat

WHEEL OPTIONS

1LE offers one 20-inch wheel for the 2013 model year and engineered to the highest standards.

Standard 10-spoke wheel is black with a low-gloss clear coat, forged alum and has the CAMARO logo. These wheels are 11 lbs. lighter than the current 2SS model wheels.

EXTERIOR/TRANSMISSION/INTERIOR

Exterior:

  • Forged aluminum wheels ( as listed above )
  • Power Sunroof ( option )

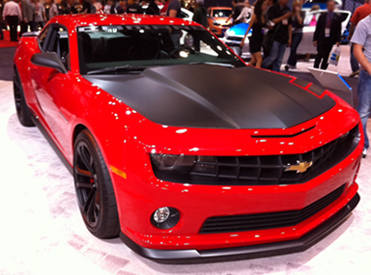

  • Matte Black Hood, front splitter and rear spoiler ( standard )
  • RS package ( option on 1SS & 2SS models )
  • Ground effects package ( optional )
  • Satin nickel fuel door ( optional )
  • Dealer installed heritage grill ( optional )
  • Red brembo brake calipers, 4 piston system ( standard )
  • Dual mode exhaust ( standard )
  • Electric power steering ( standard on 2013 SS models )
  • Production version camaro 1LE will not have hash marks or cut ins on the factory hood wrap

Transmission:

  • Six speed manual is standard
  • No Automatic transmission for Camaro 1LE
  • Tremec TR6060 Six speed Manual SS with 1LE Package
  • First: 2.66
  • Second: 1.78
  • Third: 1.30
  • Fourth: 1.00
  • Fifth: 0.74
  • Sixth: 0.50
  • Reverse: 2.90
  • Final drive ratio: 3.91

Interior:

  • Sueded-microfiber wrapped steering wheel and shift knob - ( standard )
  • Audio system 7" inch diagonal color touch screen display - ( standard )
  • Navigation integration on 7"inch touch screen mylink ( optional )
  • Embroidered center console lid , requires RS package ( optional )
  • Illuminated footwells ( optional )
  • Rear vision package ( standard on 2SS 1LE's )
  • Premium audio system ( standard on 2SS 1LE's )

OTHER DETAILS:

  • Four-pack auxiliary guages
  • 6-way power driver and passenger seats
  • Bluetooth for select phones
  • Boston Acoustics premium nine-speaker system
  • Rear camera display on " 7inch touch screen dash for 2013
  • Rear park assist
  • USB port
  • PDIM (Preferred Device Interface Module)
  • XM Satellite with 3 trial months

 GM looking to gain SCCA approval for the 1LE Camaro

Changes to optimize the 1LE for track-day use include:

  • Larger, 27-mm solid front stabilizer bar, and 28-mm solid rear stabilizer bar for awesome body control
  • Higher-capacity rear-axle half shafts to help with increased horsepower levels of traction
  • Strut tower brace for improved steering and response
  • ZL1-inspired 20 x 10-inch (front) and 20 x 11-inch (rear) aluminum wheels
  • 285/35ZR20 Goodyear Eagle Supercar G:2 tires front and rear ( same as the front tires for ZL1 )
  • ZL1 wheel bearings, toe links and rear shock mounts for track performance
  • ZL1 high-capacity fuel pump and additional fuel pickups for fuel delivery during high-load cornering.

1LE Part Numbers:

  • Strut Tower Brace (LT, SS, 1LE) - 22756880
  • Wheel Hubs (ZL1, 1LE) (4) - 25954415
  • Front Coil Spring (SS, 1LE) (2) - 92245257
  • Front Strut (1LE) (passenger side) - 22812984
  • Front Strut (1LE) (driver side) - 22812985
  • Front Sway Bar (1LE) - 22812946
  • Front Sway End Link (SS, ZL1, 1LE) (passenger side) - 22842515
  • Front Sway End Link (SS, ZL1, 1LE) (driver side) - 22842516
  • Rear Shock Mount (ZL1, 1LE) (passenger side upper) - 22836734
  • Rear Shock Mount (ZL1, 1LE) (driver side upper) - 22836727
  • Rear Coil Spring (SS, 1LE) (2) - 92195466
  • Rear Shocks (1LE) (2) - 22812987
  • Rear Sway Bar (ZL1, 1LE) - 22786260
  • Rear Sway Bar Endlink (SS, ZL1, 1LE) (2) - 22761221
  • Rear Lower Control Arm (SS, ZL1, 1LE) (2) - 20942237 (Needed for 2010-2011 car conversion)
  • Rear Toe Link (ZL1, 1LE) (2) - 22845487
  • 3.91 Gears only ( 1LE ) - 22813040
  • Front Splitter kit ( 1LE ) - 22950575
  • Wheels 20x10 Black ( ZL1-1LE ) - 22798741
  • Wheels 20x11 Black ( ZL1-1LE ) - 22798743

2013 1LE VIN DECODER

2 Canada
G General Motors
1 Passenger Car
F Camaro (Fbody )
S S = 1LE 1SS Manual | T = 1LE 2SS Manual | K= SS Auto No 1LE in Auto Trans (Note: 1LEs may either come with a T or an S in the VIN to designate manual transmission)
1 37 - Coupe 2 - Door Notchback
E Restraint System
W Engine Type - LS3/ J= L99 No 1LE's in L99
9 Check Digit ( Could be 1-Thru-9 Digit )
D Model Year C=2012 D=2013 E=2014 F=2015
9 Plant Location - Oshawa #1
1
5
3
6 Vehicle Sequence #
8
5

Black Hood Wrap Replacements

Original Wraps at: 1-866-944-9727

Hood Wrap Care on Camaro 1LE

The 1LE package features a matte black hood graphic manufactured and warranted by 3M. To maintain the appearance of the graphic, hand washing or a touchless car wash is recommended.

Tip: Do NOT polish or wax the graphic. Using polish, wax or any solvent-containing products will discolor the graphic. The hood wrap on this vehicle is not a GM warranty part. Owners are directed to contact their dealer for any warranty claims. The warranty form for this graphic is included in the glove box of the vehicle. Dealers are to arrange an assessment of the claim with 3M.
